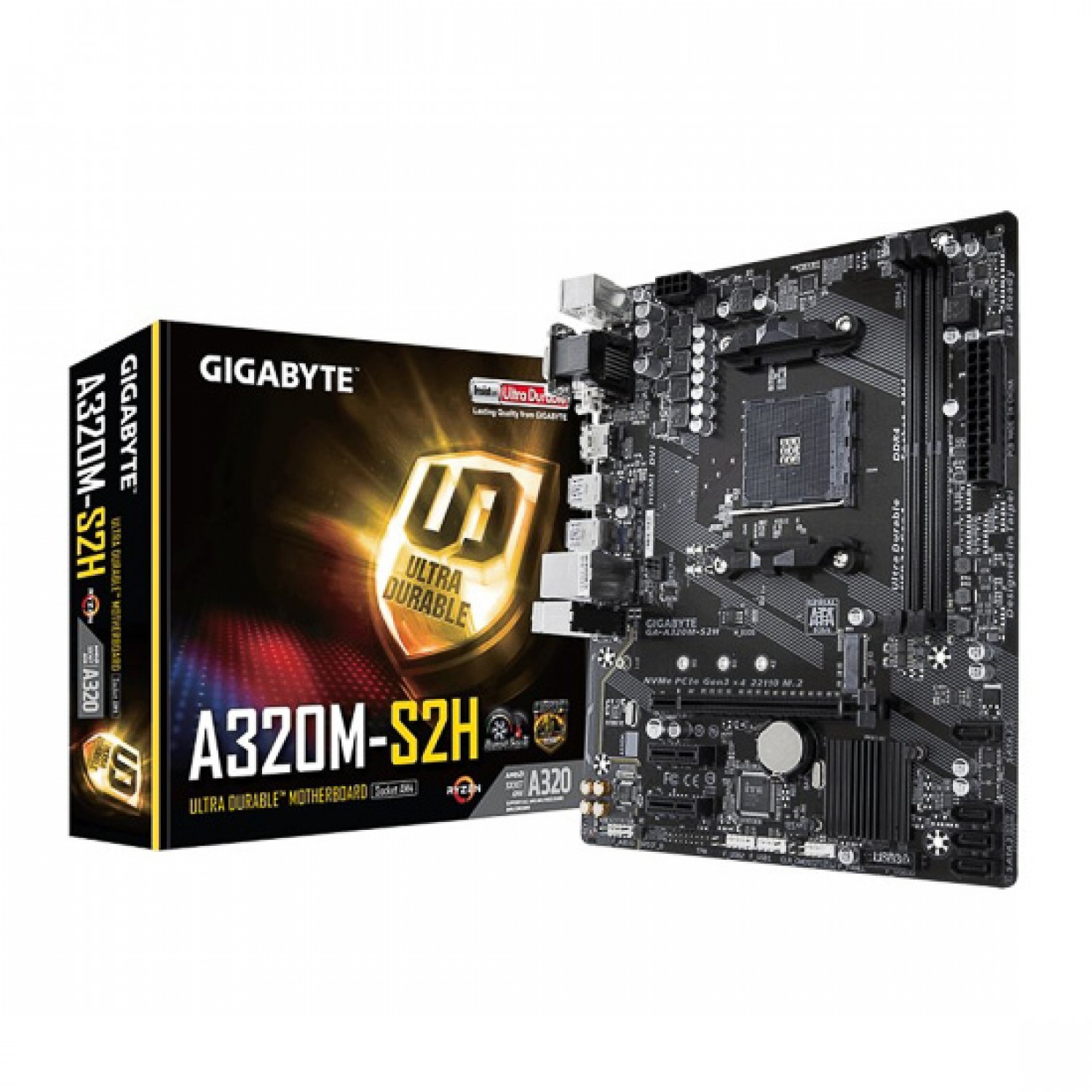

MOTHER GIGABYTE (AM4) GA-A320M-S2H

GIGABYTE

Precio

Dólares Pesos

Sin IVA Final

Subtotal:

10.50% u$s $

FICHA DEL PRODUCTO

Nombre:	MOTHER GIGABYTE (AM4) GA-A320M-S2H
Marca:	GIGABYTE
Garantía:	36 meses
Informacion del producto:	https://www.gigabyte.com/Motherboard/GA-A320M-S2H-rev-1x#kf
ID FABRICANTE:	GA-A320M-S2H
Capacidad máxima de memoria RAM	32 GB
Chipset	A320, AMD A320
Kit de procesador	No
Línea	Gaming, Gigabyte
Marca	Gigabyte
Modelo	GA-A320M-S2H
Plataforma	AMD
Ranuras de expansión	1 x PCI Express x16
Socket	AM4, Socket AM4
Tipo de memoria RAM	DDR4

Comentario interno:

CPU
AM4 Socket:
1. AMD Ryzen™ processor
2. AMD 7th Generation A-series/ Athlon™ processor
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD A320
Memory
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
  * Actual support may vary by CPU.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
Maximum shared memory of 2 GB

* Actual support may vary by CPU.
Audio
1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * Actual support may vary by CPU.
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
  (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
  * Actual support may vary by CPU.
  * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB
Chipset:
1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.1 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
13. 1 x speaker header
14. 1 x Clear CMOS jumper
15. 1 x chassis intrusion header
Back Panel Connectors
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 4 x USB 3.1 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  3D OSD
  AutoGreen
  BIOS Setup
  Cloud Station
  Color Temperature
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
2. Support for Windows 7 64-bit
  * To support Windows 7 64-bit, you must install an AMD Summit Ridge & Bristol Ridge CPU.
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. Micro ATX Form Factor; 24.4cm x 19.5cm
