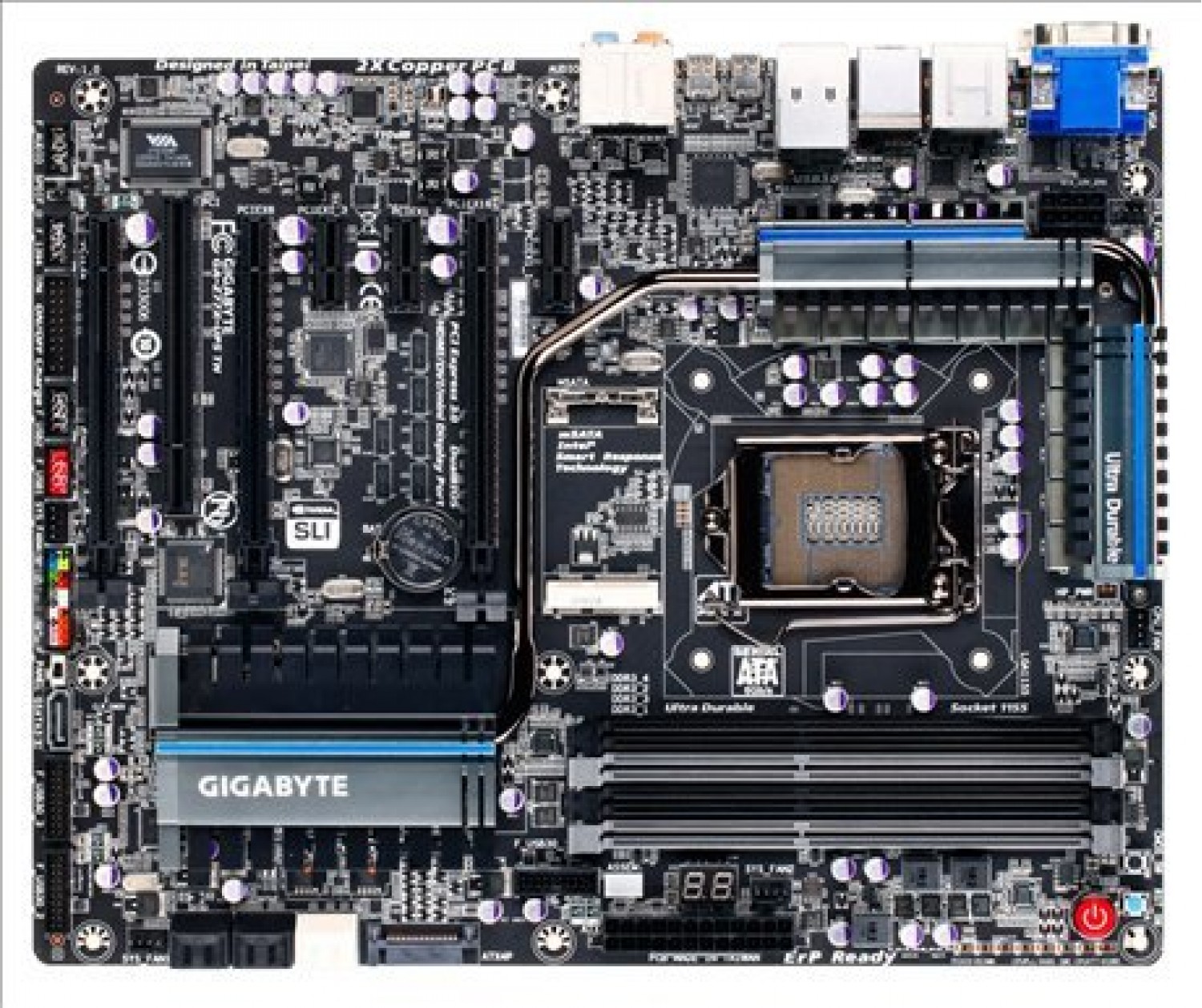

CPU

    Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset

    Intel® Z77 Express Chipset

Memory

    4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    Dual channel memory architecture
    Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
    Support for non-ECC memory modules
    Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics    Integrated Graphics Processor:

    1 x D-Sub port
    1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
    * Simultaneous output for DVI-D and the MDP2 Thunderbolt port is not supported.
    1 x HDMI port, supporting a maximum resolution of 1920x1200

Intel DSL3510L chip:

    2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
    * When a monitor connected to the DVI-D port, the MDP2 Thunderbolt port can support Thunderbolt storage device(s) only.
    * Due to PC architecture I/O resources limitation, the amount of the Thunderbolt devices can be used is dependent on the quantity of PCI Express and PCI devices be installed. (Refer to Chapter 1-7, "Back Panel Connectors", and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)

Audio

    Realtek ALC898 codec
    Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF In/Out

LAN

    1 x Intel GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

    Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
    Bluetooth 4.0, 3.0+HS, 2.1+EDR

Expansion Slots

    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed.
    * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.
    (The PCIEX16, PCIEX8, and PCIEX4 slots conform to PCI Express 3.0 standard.)
    * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.

    3 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)

    1 x PCI slot

Multi-Graphics Technology

    Support for AMD CrossFireX™ / NVIDIA SLI technology

Storage Interface    Chipset:

    2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
    4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
    1 x mSATA connector
    * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

Marvell 88SE9172 chip:

    1 x SATA 6Gb/s connector (GSATA3 8) supporting up to 1 SATA 6Gb/s device
    1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device
    Support for RAID 0 and RAID 1

USB    Chipset:

    Up to 2 USB 3.0/2.0 ports (available through the internal USB headers)
    Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Chipset + 2 VIA USB 3.0 Hubs:

    Up to 8 USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    * In Windows XP, the Intel USB 3.0 ports and VIA USB 3.0 HUB can support up to USB 2.0 transfer speed.
    * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the Intel USB 3.0 controller driver is installed.

IEEE 1394    VIA VT6308 chip:

    Up to 1 IEEE 1394a port (available through the internal IEEE 1394a header)

Thunderbolt    Intel DSL3510L chip:

    2 Thunderbolt ports on the back panel
    Intel® Certified Thunderbolt™ Device

Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x PCIe power connector
    3 x SATA 6Gb/s connectors
    4 x SATA 3Gb/s connectors
    1 x mSATA connector
    1 x CPU fan header
    4 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x S/PDIF In header
    3 x USB 3.0/2.0 headers
    2 x USB 2.0/1.1 headers
    1 x IEEE 1394a port
    1 x Clear CMOS jumper
    1 x Trusted Platform Module (TPM) header
    1 x power button
    1 x reset button
    1 x Clear CMOS button
    1 x BIOS switch button
    Voltage Measurement Points

Back Panel Connectors

    1 x D-Sub port
    1 x DVI-D port
    1 x optical S/PDIF Out connector
    1 x HDMI port
    2 x Thunderbolt ports
    1 x eSATA 6Gb/s connector
    4 x USB 3.0/2.0 ports
    2 x USB 2.0/1.0 ports
    1 x RJ-45 port
    5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller

    iTE I/O Controller Chip

H/W Monitoring

    System voltage detection
    CPU/System temperature detection
    CPU/System fan speed detection
    CPU overheating warning
    CPU/System fan fail warning
    CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

    2 x 64 Mbit flash
    Use of licensed AMI EFI BIOS
    Support for DualBIOS™
    PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

    Support for @BIOS
    Support for Q-Flash
    Support for Xpress Install
    Support for Xpress Recovery2
    Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
    Support for eXtreme Hard Drive (X.H.D)
    Support for Auto Green
    Support for ON/OFF Charge
    Support for Q-Share
    Support for 3D Power
    Support for EZ Setup

Bundle Software

    Norton Internet Security (OEM version)
    Intel® Rapid Start Technology
    Intel® Smart Connect Technology
    Intel® Smart Response Technology
    LucidLogix Virtu MVP
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.

Operating System

    Support for Microsoft® Windows 8/7/XP

Form Factor

    ATX Form Factor; 30.5cm x 24.4cm
